The SM-Vac/Boost accurately measures the vacuum pressure and boost pressure of any intake manifold. This is ideal for turbo and supercharged applications where monitoring the intake pressure is vital. The Vacuum / Boost Sensor Module can also be used as a stand alone unit capable of interfacing with 3rd party hardware where both the digital output and the analog output are available simultaneously. Its measurement range is 30.5 inHg to 30 PSI or 760 mmHg to 2.11 Kg/cm^2.



Sensor Address Units Min Max
Vacuum 3 0 - Vac in/Hg 29.93 0
    1 - Vac mm/Hg 760 0

Boost 4 2 - Boost 0-30 PSI 0 30
    3 - Boost 0-2 kg/cm 2 0 2.07
    4 - Boost 0-15 PSI 0 15
    5 - Boost 0-1 kg/cm 2 0 1.12


Up to 32 Sensor Modules can be daisy chained together in the PLX iMFD system and can be connected to any PLX Multi Gauge through the digital serial output port such as the DM-6 or DM-100.



Features

  • Built-in Sensor
  • 1 analog output
  • 1 digital input, 1 digital output
  • Digital precision



Included Items:

  • SM-V/B main unit
  • 4ft power wire with 2.1mm connector
  • 4ft Analog wires and connector with 4 terminals
  • 1ft Serial Cable
  • Termination jumper
  • Pressure sensor is built-in
  • User Manual



Technical Specifications

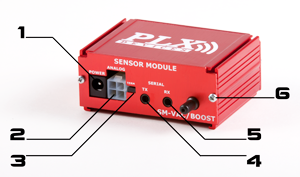

1) 12V power input
2) 4 Prong analog clip
3) Termination Jumper
4) Serial TX Plug (Out)
5) Serial RX Plug (In)
6) 3 Bar MAP Sensor



Physical Dimensions: 2 x 2.875 x 1.125" (52 x 75 x 28mm) L x W x H
Technology: Active Sensor Control Technology
Accuracy: <0.25 PSI
Measurement Range: 30.5inHg - 30 PSI (760mmHg - 2.11kg/cm2)

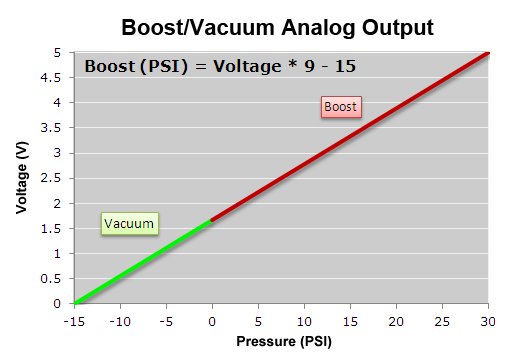

Analog Outputs: Linear 0-5V (Driving Current 20mA)
Operating Voltage: 8V-18
Power Consumption: 0.3 Watts
Operating Temperature: 0 - 85 Deg Celsius
Sensor: 3 Bar MAP Sensor
Enclosure: Extruded Aluminum

SKU SM-VAC
Barcode # 897346002177
Brand PLX Devices
Shipping Weight 1.0000kg
Shipping Width 0.120m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.001200000m3
