Kiwi3 OBD2 bluetooth scan tool is the next generation of OBDII scanners which no longer requires cumbersome pairing configurations. Simply plug and launch your favourite app. Kiwi3 does the rest!. It is up to 4 times faster than the nearest competitor and uses ultra power allowing you to leave your device installed permanently in your vehicle.



OBD-II Smartphone Applications

Kiwi3 is a plug and play automotive tool that connects to the onboard diagnostic port (OBDII / CAN), retrieves engine data from your car's computer and wirelessly transmits to your smartphone, tablet, smartwatch or PC.

You can read and reset engine diagnostics trouble codes DTCs, monitor real-time performance gauges, measure power, torque and fuel efficiency. It can also be used a trip computer and GPS mapping with data overlay, data log and more!



OBD-II Engine Parameters

Depending on the app and the vehicle's make and model, the following parameters can be displayed:

  • Air Flow (MAF)
  • Air Intake Temperature
  • Catalyst Converter Temp
  • Coolant Temperature
  • Engine Timing
  • RPM
  • Distance travelled since code cleared
  • Oxygen Sensor Voltage
  • Fuel Level
  • Fuel Pressure
  • ECU Voltage
  • Intake Pressure (MAP)
  • Short Term Fuel Trim
  • Throttle Position
  • And More

Works with Multiple Apps

Kiwi3 supports a variety of OBD2 apps for every level of car enthusiast. Apps can be downloaded from iTunes App Store, Google Play Store and Windows App Store (Depending on Operating System Availability).

It is compatible with multiple apps like DashCommand, Torque, Harry's Laptimer, and many more!

Customers with Android Nougat 7, please use OBD Car Doctor or OBD Auto Doctor Apps

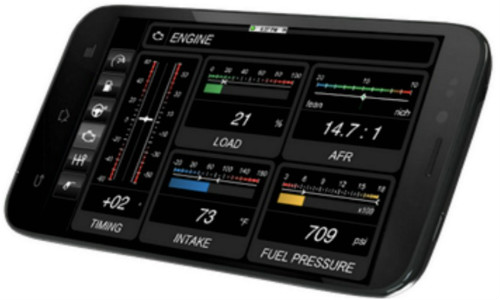

DashCommand App Features:

Operating system: IOS

  • Performance gauges including engine speed, corrected vehicle speed, open/closed loop, boost/vacuum combo, acceleration, braking and torque
  • Fuel economy including instant fuel economy, average fuel economy, distance to empty, time to empty, fuel level %, fuel remaining, fuel flow rate gauge
  • Engine gauges including timing/spark advance, engine coolant temp, intake air temp, ambient air temp, manifold absolute pressure, mass air flow, fuel trims (short and long term), percent engine load, catalyst temp, fuel pressure, air/fuel ratio
  • Trip computer that maintains stats for up to 5 trips and includes distance travelled, fuel consumed, average fuel economy, fuel cost, elapsed time, drive time, average carbon dioxide emission rate, total carbon dioxide emission, start date and time
  • Emission testing allowing you to read and clear diagnostic trouble codes and know your IM readiness status
  • Professional skid pad showing lateral and acceleration/braking Gs with min/max indicators
  • Much more



Torque - For the car enthusiast who wants it all

Operating system: Android 6

Free Features:

  • Customisable real-time gauges
  • Check engine light code reader and reset
  • Massive fault code database generic and manufacturer specific fault codes
  • Dynometer (Dyno) including horsepower and torque
  • Turbo boost feature for cars that support MAP and MAF sensors

Paid Features:

  • Support for more vehicles and ECU types
  • Cleaner user interface without ads
  • Alarms and warnings (for example if your coolant temperature goes over 120 C)
  • Video track recorder with real-time gauges and mapping overlay
  • Fully customisable dashboard, profiles and themes
  • AIDLS, API for this party apps
  • Horsepower, Torque, 0-60, and quarter mile tests
  • Data logging / graphing
  • Map / Track Views
  • Much more

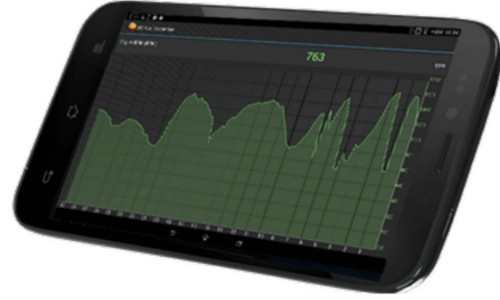

OBD Car Doctor - Simple, Intuitive OBD tools and gauges

Operating system: Android 7 and iOS/iPhone

Free Features:

  • Check engine light code reader and reset
  • Real-time gauges and data including speed, rotation, temperature, and more
  • Fuel Economy Tracker

Paid Features:

  • Real-time parameter recoding
  • Multiple parameters display
  • Parameter recorder (with background mode)
  • View and sending recorded parameters traces
  • GPS support

Specifications

  • Supported OBDII Protocols: SAE J1850-PWM, SAE J1850-VPW, ISO 9141-2, ISO 14230-4 Slow/Fast, ISO 15765-4 CAN, SAE J2411-SWCAN, SAE J1939 250/500kbps
  • Interface: PLXKiwi V2.0 (Compatible with ELM327 Instruction Set)
  • Compatible cars: all OBD-II protocols
  • Operating Voltage: 8-25V DC
  • Operating Temperature: 0-85 Degrees Celsius
  • Power Consumption: 0.2Watt (Typical) , 0.05Watts (Sleep)
  • Dimensions:3.3 cm X 5.2cm X 2.4cm L/W/H
  • Wireless standard: Bluetooth V4.1
  • Compatible devices: IOS, Android, Mac, Windows, Linux
  • Supported OBDII Protocols: SAE J1850-PWM, SAE J1850-VPW, ISO 9141-2, ISO 14230-4 Slow/Fast, ISO 15765-4 CAN, SAE J2411-SWCAN, SAE J1939 250/500kbps
  • Interface: PLXKiwi V2.0 (Compatible with ELM327 Instruction Set)
  • Compatible cars: all OBD-II protocols
  • Operating Voltage: 8-25V DC
  • Operating Temperature: 0-85 Degrees Celsius
  • Power Consumption: 0.2Watt (Typical) , 0.05Watts (Sleep)
  • Dimensions:3.3 cm X 5.2cm X 2.4cm L/W/H
  • Wireless standard: Bluetooth V4.1
  • Compatible devices: IOS, Android, Mac, Windows, Linux
SKU kiwi3
Barcode # 897346002832
Brand Kiwi3
Shipping Weight 0.6000kg
Shipping Width 0.120m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.001200000m3
Unit Of Measure ea
