This Head Up Display will provide your car's dash information on the windshield. Instead of taking your eyes off the road to check your speed, fuel consumption or coolant temperature, you'll easily find all this information where they should be.


Note: Works with OBD-II and CAN compatible cars only.


HUD Modes


  • Idle Mode: Shows Coolant Temperature and Fuel Consumption (L/H)
  • Cruise Mode: Shows vehicle speed and Fuel Consumption (L/100KM)
  • Trip Data: Shows trip mileage, average fuel consumption, time, average speed, coolant temperaturte etc.
  • HUD Alerts: Overspeed,  Coolant Temperature, Battery Voltage, Check Engine Light, Fatigue Driving

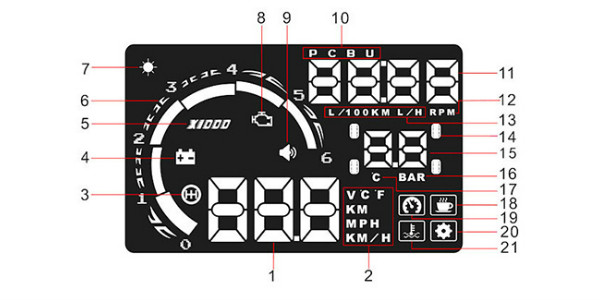

Head Up Display Information

  1. Current vehicle speed
  2. Unit mark: V: Voltage, C: Degree Celsuis, F: Degree Fahrenheit, KM: Kilometer, MPH: Mile per hour, KM/H: Kilo-meter per hour
  3. Gear shift alert for optimal and efficient driving
  4. Battery voltage: alerts you when battery voltage goes below 12V
  5. Engine revolving speed (Icon)
  6. Rotation speed
  7. Light sensor to automatically adjust brightness
  8. Check Engine light
  9. Buzzer mark
  10. Engine Fault code
  11. Multi functional display area: Fuel Consumption, RPM, Fault Code
  12. Engine revolve speed (Unit)
  13. Fuel Consumption L/100KM (Cruise Mode)
  14. Tyre Pressure Indicator
  15. Tyre Pressure Value
  16. Tyre Pressure / Temperature Unit (Bar)
  17. Tyre Temperature Unit (Celsuis)
  18. Fatigue driving alert
  19. Overspeed alert
  20. Setting status indicator
  21. Engine water temperature alert (100 C)


Bluetooth App For Android Devices


The H301 HUD allows you to connect the vehicle's OBD parameters to your Android smartphone or tablet via Bluetooth. You can install your preferred app like (Torque) to monitor additional gauges or diagnose engine trouble codes.



TPMS Feature:


With the H301 HUD, it is possible to monitor your tyres' pressure (Bar) and temperature (Celsuis) for safer and more efficient driving. You can purchase additional TPMS sensors for this HUD from below link:


4 X Tyre Pressure Monitoring Sensors For HUD




  • Bluetooth OBD interface (App purchased seperately)
  • TPMS interface (Sensors sold seperately)
  • Size: 79 X 119mm / Weight 110g
  • Colour: Black
  • Working Temperature: -40 - 85 C
  • Working Current: 0.96A
  • Standby Current: 0.04A


Package Contents:

  • Main HUD unit
  • OBDII Cable
  • User Manual
  • Mat
  • Reflective film
Barcode # Does Not Apply
Brand V-Checker
Shipping Weight 0.4000kg
Shipping Width 0.120m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.001200000m3
